Smart Ethanol Fireplace Alcohol Burner





Product Introduction This Smart Ethanol Fireplace Alcohol Burner is a new type of combustion equipment that integrates environmental protection, safety, and intelligent control. It is suitable for indoor high-end residences, commercial places, boutique hotels and other scenes.   Product Specifications 1. Materials: Complete Set: 304# stainless steel Furnace Shaft and Fuel Tank: 1.2mm thickness Apical Plate: 3mm thickness   2. Technical Information: Voltage: 100V~240V AC Inside Burner Voltage: DC 24V, 2A Frequency: 50Hz / 60Hz Capacity: 50W

advantages All 304# stainless steel structure The furnace body, top plate and oil tank are all made of high-quality 304 stainless steel, of which the top plate thickness is 3mm, ensuring the overall structural strength and anti-deformation ability.   Intelligent control system Built-in 24V DC intelligent main control system, through the remote control or button to achieve ignition, flame adjustment, flameout and other full process control, user operation is more simplified.   Energy saving and more environmentally friendly The whole machine power is only 50W, supports 100V~240V wide voltage input, adapts to the global market, runs stably and consumes very little energy.   Multiple safety protection system Equipped with multiple safety protection functions, such as temperature control protection, liquid level monitoring, anti-dry burning automatic flameout, real-time monitoring of operating status, automatic shutdown immediately in case of abnormality, effectively preventing accidents.

Company Strength
Xinsheng Trading Company was established in 2010 and is located in Foshan City, Guangdong Province. It is committed to the research and development and production of water mist fireplaces, alcohol fireplaces, tabletop fireplaces and electric fireplaces. In 2021, the company successfully developed new water mist fireplaces and electric fireplaces, and sales revenue exceeded 200 million yuan in 2023.



Professional team: The company has increased its efforts to introduce and train talents and has formed a professional team. The company has increased its investment in the R&D team to improve its R&D capabilities and technical level.



Technological innovation: The research and development and production of water mist fireplaces, ethanol fireplaces, tabletop fireplaces, and electric fireplaces. Through continuous innovation, the company has successfully launched a series of competitive products and solutions.



Customized solutions: According to customer needs and scenarios, provide personalized customized solutions to meet customer special needs.

24-hour online service: Provide 24-hour online consulting services to solve problems encountered by customers during product use and ensure smooth use by customers.









































• Consultation: Initial consultation or discussion with the customer to understand their requirements, preferences, and provide information about the product.
• Quotation: Based on the consultation, provide the customer with a formal quotation outlining the product details, pricing, payment terms, delivery options, and any applicable taxes or fees.
• Signing PI (Proforma Invoice): Issue a Proforma Invoice (PI) detailing the agreed-upon terms, pricing, payment terms, delivery schedule, and other relevant information. The customer reviews and confirms this document.
• Payment: Once the customer approves the PI, they make the payment as per the agreed terms. This could involve partial or full payment depending on your business policies.
• Production/Procurement: Once payment is received, initiate the production or procurement process of the automatic bio fireplace burner. Ensure adherence to manufacturing standards and specifications.
• Quality Control: Conduct quality control tests and inspections to ensure that the product meets the required standards and specifications.
• Packaging: Properly package the product to ensure safe transportation and delivery to the customer. Packaging should be robust enough to protect the product during transit.
• Shipping/Transportation: Arrange for shipping or transportation of the packaged burner to the customer's designated location. Select appropriate carriers or logistics partners to ensure timely and safe delivery.
• Customer Acceptance: Upon receipt of the burner, the customer inspects and verifies that the product meets their expectations and is in good condition.
• After-Sales Support: Offer after-sales support, including warranty services, troubleshooting assistance, and responding to any inquiries or issues that arise after the sale.

















Step 1: Choose materials for firebox

As an ethanol fireplace is a real flame fireplace, so custom fireboxes must be made of non‐combustible materials, such as stainless steel, stone, and marble.



Step 2: Build a wall hole

Please firstly check size of your bought fireplace, or you can ask your manufacturer to supply the drawing of burner with you . Conbine below data to build a wall hole.

For a single side open wall hole, your need to make sure the thickness of the inside wall is 20 cm for rapid heat dissipation. We suggest the open size of the wall hole is the length of your fireplace + 20~30 cm, the inside height of the wall hole is 50 cm, and the width of the wall hole is the width of your fireplace + 20 cm.

Please refer below dimensions indicated in the sketch.

The size of the cavity needs to be the same as the size of the ethanol fireplace burner; the length of the cavity must be shorter than the length of the ethanol fireplace burner top plate and longer than the length of the fireplace body; the width of the wall hole must be less than the width of the top panel of ethanol fireplace burner and greater than the width of the fireplace body. The height of the wall hole follows the same principle, too.The less-than sign is used below for clear expression:

• length of the fireplace body < length of the wall hole < length of the top panel of ethanol fireplace burner
• width of the fireplace body < width of the wall hole < width of the top panel of ethanol fireplace burner
• height of the fireplace body < height of the wall hole < height of the top panel of ethanol fireplace burner

Please check below sketch , you can easily understand.

Step 3: Please leave a electricity power connection socket on the right side under / near the hole for burner to fit in. And please have this socket electricity supply can control on / off from outside wall. Step 3 for smart ethanol fireplace burner, for manual ethanol fireplace, you can ignore this step.

Step 4: Measure with a level to see if the surface of the base is even, make sure the whole fireplace stay at same level.

Step 5: Normal fireplace is a finished product, open the package and take out the fireplace.

Step 6: Simply use the lifting handle to hook the two burner heads and insert them horizontally into the wall hole directly.

Step 7: Make sure the top panel is level with the base, as shown in the following image.







• Regular maintenance and inspections are crucial to prolonging the lifespan of your fireplace. Since Smart Ethanol Fireplace Alcohol Burners burn clean fuels, clean-up and maintenance are easy and hassle-free.
• Completely cool the Smart Ethanol Fireplace Alcohol Burner before cleaning and/or inspection.
• Occasionally wipe down dust from the model using soft cloths with a mix of warm water and mild detergent. This mixture can also be used to clean the burner reservoir regularly. Use isopropyl alcohol for hard-to-remove stains.
• The exposed areas of the Smart Ethanol Fireplace Alcohol Burner should also be cleaned for efficient operation. You can then polish the whole thing using a microfiber cloth, leaving the surface shiny and brand-new-looking.





• Always ensure the burner is off, empty of ethanol and at room temperature (never clean an ethanol fireplace when it's running or still hot).
• Spray a multi-purpose cleaner on the surface of the burner and wipe with cloth (make sure you wipe in the direction of the 'grain' of the burner).
• If material has fallen into the ethanol fireplace burner, use a vacuum cleaner to remove debris through the burner opening.
• If your burner smells unusually strong after extensive use, remove the burner (make sure it's at room temperature) from its surround and wash in hot, soapy water. Rinse thoroughly under running water and wait until the burner is completely dry before placing it back into its surround and reusing.
• Never use steel wool or scrubbing brushes/sponges, as these will scratch the surface.
• Use a glass cleaner to clean the fireplaces glass screens.





Remove the Burner

Make sure the Smart Ethanol Fireplace Alcohol Burner has been off and cool for quite some time. Take out the actual burning unit form the fireplace and drain out any left over fuel. Get a dry cloth and wipe the remaining residue of fuel that maybe left until the surface is somewhat dry.



Clean the Burner

With a damp cloth, warm water, and very mild soap, proceed to wipe and clean the Smart Ethanol Fireplace Alcohol Burner until zero residue is left. Wipe with a dry cloth and hen set aside to air dry completely.



Wipe the Inset

Like you did with the Smart Ethanol Fireplace Alcohol Burner, wipe down the insert and remaining pieces with a dry cloth to remove any residue.



Clean the Inset

Using the same type of mild soap and warm water, get a clean cloth and begin to wash the surfaces of the insert. Wipe with a dry cloth and then set that aside to air dry, too.



Reassemble and Refill

Once everything is squeaky clean and air dry, begin to put your pieces back together. Carefully refill the Smart Ethanol Fireplace Alcohol Burner with new bio-ethanol fuel.





* Use liquid ethanol only!

* Please place the burner properly and horizontally. Be sure the burner is leveled before using.

* Do not place the burner in wet enviroment or condition.

* Never leave an open fire unattended at any time!

* In a house of typical construction, that is, one that is not of unusually tight construction due to heavy insulation and tight seals against air infiltration, an adequate supply of air for combustion and ventilation is provided through infiltration.

* Do not use the fireplace in a bathroom, a room where sleeping accommodation is provided or any other small room.

* Never fill fuel while unit is still burning or hot.

* Insert burner into fireproof materials only.

* Never install burner into plastic or wood.

* Using a burner with flammable materials is at your own risk.

* Keep out of reach of children.

* This fireplace will produce heat, but should not be used as a main source of heat.

* The fireplace must only be installed on a solid surface of non- flammable material.

*Be sure to keep any flammable materials such as drapes/curtains and any decorations at least 4 feet/1 meter away from fireplace.

* Do not place any items on top of or inside fireplace.

* Do not touch the fireplace while lit or still hot.

* It is extremely dangerous and forbidden to use bio-ethanol car fuel or any unapproved fuel.

* Always use a funnel if manually refilling the fireplace.

* Never add fuel to the burner while fire is burning or unit is still hot.

*Allow at least 30 minutes for fuel tray to cool down before refueling.

* Do not ingest bio-ethanol fuel and avoid contact with eyes and skin.

* Spilled alcohol must be removed with an absorbent tissue and cleaned with water to prevent ignition outside the burner reservoir.

* Be sure to have a fire-extinguishing device in the proximity of the fireplace in case of emergencies.

* Never leave a lit fireplace unattended.

* Keep children and pets away from the fireplace. Do not cover the fireplace.

* Do not place any flammable materials or clothing on the fireplace.

* Do not smoke when filling the burner with fuel.

* Store your fuel containers away from any heat source.

* Be sure to store and keep your fuel away and out of reach of children and pets.

* Never blow out the flame in order to put it out; this will only increase the flame.

* If you wish to extinguish the flame before the fuel has completely burned out, please follow instructions in this manual.

* It is forbidden to modify this burner in any way.

* Avoid heavy airflow ( fans high breeze..) in the room where the fireplace is operated.

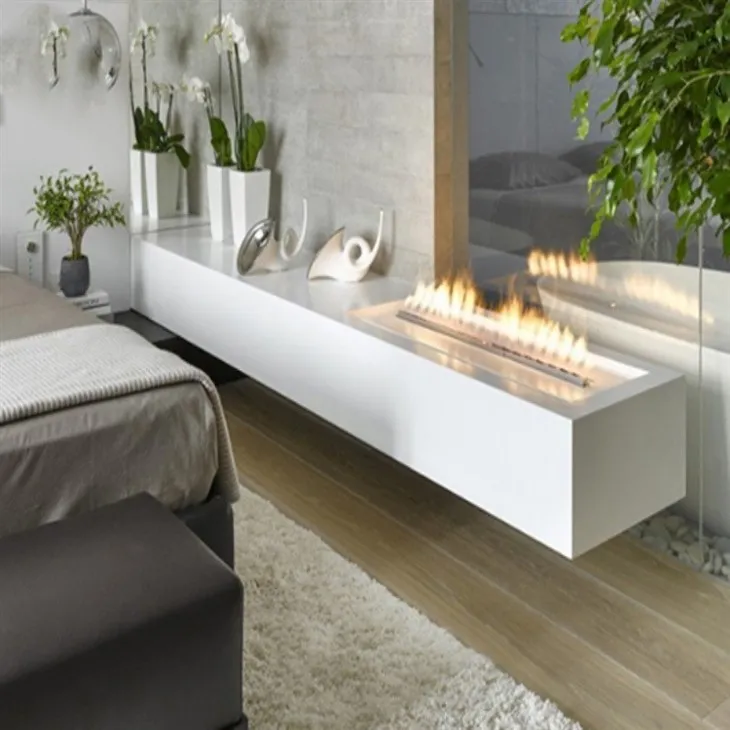

1. Bedroom (fully open installation)

2. Living room (single-side open wall hole installation with fireplace TV stand)

3. Meeting room

4. Showing room

5. Dining room (double-side open installation)

6. Hotel and club

7. Restaurant

8. Homestay



9. Bar (3-side open C-shape installation)





1. Free product debugging and delivery
2. Provision of free drawings, installation data, and installation guidance
3. Technical guidance on usage according to consumer requirements
4. Technical training
5. Ensuring the supply of repair parts
6. Handling letters and visits from consumers and answering consumer inquiries. Various methods are used to collect consumer feedback on product quality, with timely improvements made as necessary.
7. 24-hour online service
