Water Mist Electric Fireplace

Water Mist Electric Fireplace

Size of water mist electric fireplace: 2000 mm L* 240 mm W* 160 mm H
Material : 3mm T steel rock layer above the ore bed water vapor fireplace
+ 304# stainless steel tank
Warranty : 5 years
Send Inquiry
Model No. Picture Description Size MOQ Flame length Capacity Burning time G.W. Hole size for fit burner in
WY-01 (50)

product-125-213 5 years warranty

1st panel ventilation version
2nd timed control
3rd full water voice prompt
4st intelligent drainage
5st water shortage protection
6st 97% ultra long flame
7st LCD touch screen control board
8st mobile APPwifi remote control
9st flame five gear adjustment
10st +128 color flame
11st UV sterilization system
12st imported American Jiatong fifth generation chip
13st: voice control
14st. The glue-filled light strip is waterproof and anti-corrosion,
so there will be no problem in long-term use.
It also uses a 10x lens and a ceramic wick that dissipates heat quickly.
15st: with direct water supply - can connect your water pipe

indoor regular version Material : 3mm thickness steel top panel +
1.2mm T steel body + 1.2mm T 304# stainless steel tank voltage 110~ 240V
inside voltage : 24 V
power: 300V
current : 10A
wood box package


Full stainless steel version water vapor fireplace optional
waterproof version water vapor fireplace optional
500mm L* 240 mm W* 160 mmH 1 pcs 464mm 3L 14~ 20 hours

16 KGS 480 L X 220 w * 250 mm H
WY-01 (70) 700mm L* 240 mm W* 160 mmH 1 pcs 664mm 4L 14~ 20 hours

17 KGS 680 L X 220 w * 250 mm H
WY-01 (80) 800mm L* 240 mm W* 160 mmH 1 pcs 764mm 4.8 L 14~ 20 hours

18 KGS 780 L X 220 w * 250 mm H
WY-02(100) 1000mm L* 240 mm W* 160 mmH 1 pcs 964mm 6L 14~ 20 hours

23 KGS 980 L X 220 w * 250 mm H
WY-02(120) 1200mm L* 240 mm W* 160 mmH 1 pcs 1164 mm 7 L 14~ 20 hours

28 KGS 1180 L X 220 w * 250 mm H
WY-02(150) 1500mm L* 240 mm W* 160 mmH 1 pcs 1464mm 9L 14~ 20 hours

35 KGS 1480 L X 220 w * 250 mm H
WY-02(180) 1800mm L* 240 mm W* 160 mmH 1 pcs 1764mm 11L 14~ 20 hours

42 KGS 1780 L X 220 w * 250 mm H
WY-02(200) 2000mm L* 240 mm W* 160 mmH 1 pcs 1964mm 12L 14~ 20 hours

47 KGS 1980 L X 220 w * 250 mm H
WY-02(250) 2500mm L* 240 mm W* 160 mmH 1 pcs 2464mm 15L 14~ 20 hours

58 KGS 2480 L X 220 w * 250 mm H
WY-02(300) 3000mm L* 240 mm W* 160 mmH 1 pcs 2964mm 18L 14~ 20 hours

70 KGS 2980 L X 220 w * 250 mm H



Product Description



Water vapor fireplace







Size: length 2000mm * width 240mm * height 160mm
Material: top plate is 3mm T-shaped steel, black powder sprayed,
+ water tank is 304# stainless steel
Warranty 5 years
Gross weight: 46kg, Packing: wooden box



Product Features

1. Intelligent timing control
The Water mist electric fireplace is equipped with a high-precision timing control system, which can achieve accurate start and stop within 0~24 hours and support one-click reservation.



2. Full water voice alarm reminder
When the water tank is full, the system will automatically issue a voice prompt to prevent the user from adding water again and causing overflow.



3. Automatic water filling system
The fireplace has a built-in intelligent liquid level detection module and supports automatic water filling function.



4. 97% efficient combustion simulated flame
The water mist electric fireplace uses a high-frequency ultrasonic atomizer and an LED light group to achieve a 97% super-simulated flame effect.



The water mist electric fireplace uses the fifth generation chip




First: water shortage protection.
Second: anti-dry burning system.

product-500-422



The water mist electric fireplace uses a 3mm thick top plate
product-500-397



UV light sterilization system



UV technology with a sterilization rate surpass than 99.99%

UV lamps, with strong penetration, can comprehensively eliminate harmful effects, effectively kill 99.9% of mites and bacteria, and destroy bacterial cells.



Kill the following bacteria

Escherichia coli, Candida albicans, Pseudomonas aeruginosa, Salmonella typhimurium, Staphylococcus aureus, Staphylococcus aureus

product-500-446



Mobile APP remote control function



1st : Adjust flame .
2nd : Turn off/ starting up.
3rd : share function with your family members.
4st : Not have restrict of distance control fireplace.

product-500-489



AI voice control Water vapor fire steam fireplace



Intelligent AI voice control color flame
Intelligent voice command: voice control + remote control + panel control
The command is as follows:
User: Hi, fireplace, electric steam fireplace Reply: I am here.
User: Turn on the fireplace, electric steam fireplace Reply: Turn on.
User: Automatically switch colors, electric steam fireplace Reply: Switch.
User: Large flame, electric steam fireplace Reply: Complete.
User: Small flame, electric steam fireplace Reply: Complete.
User: Add water, electric steam fireplace Reply: Complete.

product-500-385



Silent loop system runs quietly without disturbance



Reduce the noise of fan products, suitable for environments such as libraries, study rooms, bedrooms, etc
Internal machine at 22DB(A), Normal is 50DB(A)

product-500-334
Detail function tecnology data



Size : 70/100/120/150/180/200/20/300cm L* 240 mm W* 160 mmH
Burning time : 14~ 20 hours
Flame size : 9-gear
Function : Imported American Tongjia fifth generation chip
Function : Voice control ( turn on/ off/ adjust flame/ switch color /feeding )
Function : Phone tuya app control
Function : Button and remote control control
Function : 128 color flame
Function : Flame brightness can be adjusted
Function : UV sterilization system-prevent water tank breed all kinds of bacteria With 99% sterilization rate.keep water clean
Function : Full water voice prompt
Function : Water Level gear disply at LCD touch screen
Function : Glue-filled light strip including waterproof and anti-corrosion, so there will be no problem in long-term use. It also uses a 10x lens make flame more beautiful and a ceramic wick that dissipates heat quickly.



Function : With direct water supply - can connect your water pipe
Function : Timed control
Function : Water shortage protection
Function : Intelligent drainage
Input voltage: 110~ 240V
Output voltage: 24V
Fuel Pure water
Power 300 W
With thermostat system Around of flame have no water droplet, we are not worried about furniture getting damp anymore
Warranty: 5 years
Optional Outdoor waterproof water vapor fireplace
Optional Full stainless steel
Material : 3mm thickness steel top panel
1.2mm T steel body + 1.2mm T 304# stainless steel tank



Our all of main Electronic components are all from internationally renowned brands
Electronic components Manufacturer
ROHS resistor FromTaiwan Housheng Electronics
Level Sensor From Japan OKI
CPU microcontroller From American Tongjia Technology
ROHS capacitor From South Korea Samsung
Motor drive From Mitsui Group-Toshiba
Power management IC Sensor From STMicroelectronics
ROHS capacitor From South Korea Samsung
Motor drive From Mitsui Group-Toshiba



LCD touch screen





product-800-944



Certification



product-941-446



production department



product-790-980



Ordering Process



Counselling-confirm offer-signing covenant -remit - bulk manufacture-QC examine goods- Packing-Shipping-Trade finish-Aftermarket



Packaging and Transport



product-750-423



product-1000-438

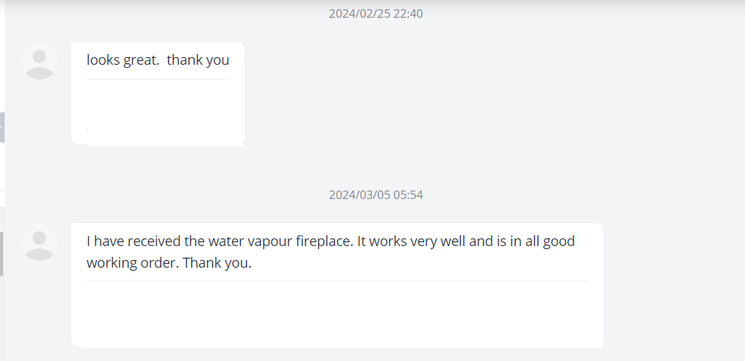

favourable comment from other customers



2

1

Cooperation decoration case



Our water mist electric fireplace is suitable for living rooms, hotels, clubs, villas, booths, showrooms, apartments

product-1200-1200

product-1200-1200

Customized services



We have a professional team of design and technical R&D engineers, accept OEM and ODM orders, and provide high-end customization and personalized customization services. We can customize according to the specific needs of customers.

We currently produce fireplaces in various shapes such as round, square, L-shaped, U-shaped, curved and rectangular. Both indoor and outdoor fireplaces can be customized. Customization is welcome.



product-736-554



How to fill water



1. Manual water addition.

After the power is turned on, the voice prompts that the water level is insufficient. After hearing the voice prompt that the water is full, you can stop adding water to the water tank. Remember not to continue adding water at this time, otherwise the water overflow will cause a short circuit. During use, the water will become less and less. When the water level is less than half, it will prompt (the water level is insufficient, please add water). At this time, just fill up the water. If the water is not added in time, the water level will reach the lowest point and prompt (the water level is insufficient, shut down after 30 seconds). Just fill up the water.

2: Press the button to add water automatically.

After the power is turned on, press the Home button once to turn on the machine, and you can add water or drain water. The fifth button on the keyboard is the "add water and drain" button (press twice to add water, press once to stop adding water. Long press for 5 seconds to drain, press once to stop draining). Depends on the water level. When the water level is low, the "add water" function will automatically start until the water level is full. After the fireplace is turned on, this function will stop working (when the water level is at the lowest level, the system will prompt that the water level is insufficient and automatically shut down).

When the water level is at the start-up level (start-up state):

1. During the water addition process, the machine starts working and produces flames.

2. If the water level reaches the lowest level, the system will prompt that the water level is insufficient, please add water. When the water level reaches the highest level and prompts that the water level is full, the fireplace will automatically stop adding water. (After turning on, the system will prompt that the water level is full.) (The flame effect is best after 15 minutes of use.)



Matters needing attention



● 1. When adding water, someone needs to supervise to avoid damaging the electrical components by adding too much water.
● 2. This product relies on the ultrasonic atomizer to generate flames. It is recommended to use purified water or clean tap water to fill the water tank. After long-term use, the atomizer is prone to rupture due to scale, causing water to penetrate into the atomizer and cause short-circuit damage. Therefore, it is necessary to clean the scale on the atomizer regularly to extend its service life.
● 3. If you need to move the machine, be sure to cut off the power first, empty the water in the water tank, and then carefully test the temperature of the machine panel by hand before moving the machine.



FAQ



Q: What is the material of the water mist fireplace?

A: We offer all-stainless steel water mist fireplaces and non-all-stainless steel water mist fireplaces for you to choose from. Please tell us which one you like.

Q: Can the water mist fireplace be installed outdoors?

A: Yes, of course. We have waterproof water mist fireplaces, please contact us and we can send you a video to watch.

Q: Will the furniture get damp after installing the water mist fireplace?

A: No, our fireplace is equipped with a constant temperature system, and there are no water droplets around the flame, so you don't have to worry about the furniture getting damp. We have done a flame test, please contact us and we can share the test video with you.

Q: Will the water in the water tank breed bacteria?

A: Our water mist fireplace is equipped with an ultraviolet sterilization system to prevent the water tank from breeding various bacteria, with a sterilization rate of up to 99%, keeping the water clean.

Q: Are there any material requirements for drilling wall holes?

A: Please use dark colors around the wall hole, the flame is more beautiful, and bright white will affect the flame effect.

Q: How to know the amount of water in the water mist fireplace liner?

A: The water level of our fireplace is displayed on the LCD touch screen, and you can check it easily.

Q: What is the warranty period of the water mist fireplace?

A: 5 years .

Q: Can I adjust the flame brightness?

A: The flame brightness can be adjusted.

Q: What are the operation methods of the water mist fireplace?

A: We have four operation methods: LCD touch screen, mobile phone APP Wi-Fi function, voice control, remote control.

Q: What are the water adding methods?

A: We have three operation methods: manual water adding, automatic water adding by button, automatic water supply by connecting to the water pipe system.

Q: Is the bulb of the water mist fireplace a halogen lamp?

A: No, the service life of the halogen lamp is only a few months. Our lamp adopts glue-filled light strip, which has waterproof and anti-corrosion functions and can reach 5 to 10 years of service life. It also uses a 10x lens and ceramic wick, which dissipates heat faster and makes the flame more gorgeous.

Q: Can the flame of the mist fireplace be adjusted?

A: Of course, we have 9 flames.

Q: How many colors does the water mist fireplace have?

A: The flame has 128 colors.

Q: Our local voltage is 110V or 230V, is it suitable for your fireplace?

A: Our water mist fireplace can work in the voltage range of 110V to 240V, so it can meet your needs.

Q: Do you accept customized size/shape or function?

A: Of course, we have a professional design and technical R&D team.

Q: If I want to use the fireplace within a set time, is it okay?

A: Of course. Our water mist fireplace has a timing control function, you can set it according to your needs.
